This technical article delivers a standard-compliant analysis of dedicated graphic LCD screens for generator set controllers, developed by the 13-year-old Shenzhen-based LCD manufacturing factory behindShenzhen Hengxunchuang Technology Co.,LTD.. As a global industrial display solutions supplier, we focus on cost-effective, high-performance products to optimize equipment maintenance efficiency worldwide. These screens are specialized for generator controllers, solving key industry pain points including limited display functionality, high original part costs, and poor harsh-environment reliability. Adhering to ISO 9001, CE, and RoHS standards, our products feature full dot-matrix drive architecture and wide-temperature adaptability, with validated applications across Europe, America, and Southeast Asia.
Technical Definition

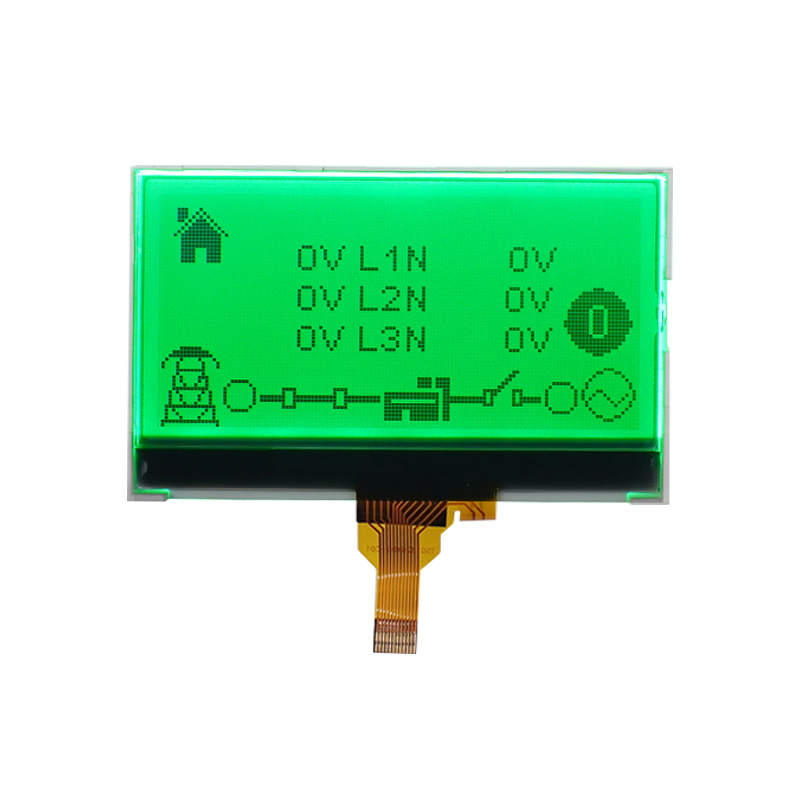

Dedicated graphic LCD screens for generator set controllers are specialized display components based on STN/FSTN/FFSTN monochrome technologies, featuring full dot-matrix drive to support custom graphics, icons, and text-graphics mixing. Compatible with mainstream microcontroller interfaces, they simplify integration for generator control systems, enabling intuitive parameter monitoring.
Our product line includes two core series: 1. Compatibility Series: Precisely matched to controllers like Deep Sea DSE7320, supporting plug-and-play replacement; 2. Customizable Series: Offering resolutions from 122×32 to 320×240, tailored to special designs or harsh conditions.
Designed with precise compatibility, robust durability, and easy installation in mind, our products follow full-life-cycle reliability standards to meet generator sets’ harsh operating demands.
Technical Principles & Differentiation
Our screens operate on a full dot-matrix drive architecture with built-in control chips, processing controller commands to render custom displays. Key modules include a compatible control chip that eliminates complex secondary development, and an industrial-grade panel with anti-electromagnetic interference and reinforced backlighting.
Compared to traditional fixed-character screens, our graphic LCDs enable flexible custom display and direct compatibility with old controllers, reducing replacement costs and complexity significantly.
Technical Parameters
All parameters are tested per international standards, with clear conditions and tolerance controls. We provide batch test reports and support third-party verification.
Parameter Category | Core Parameter | Standard Indicator | Selection Reference |
|---|---|---|---|
Display Performance | Resolution | 122×32, 128×64, etc. | Match controller display needs |
Environmental Adaptability | Operating Temperature | -20℃~+70℃; Custom up to -40℃~+85℃ | Select by working environment |
Electrical Characteristics | Interface Type | SPI, I2C, MCU | Match controller interface |
Mechanical Reliability | Backlight Life | ≥50000 hours | Long-term maintenance reduction |
Note: Custom parameter adjustments are available for special working conditions.
Core Advantages
1. Precise Plug-and-Play Compatibility: Deeply matched to original controller standards, no programming or calibration needed, cutting downtime by up to 80% compared to original parts.
2. Industrial-Grade Durability: Industrial glass and reinforced backlighting ensure stable operation in high-vibration, wide-temperature environments, with a failure rate below 0.5% in 3-year use.
3. Flexible Supply: Sufficient stock for mainstream models, with custom orders starting at 100PCS and sample delivery in 7-10 days.
Compliance & Certifications
Our products follow ISO 9001 quality management standards, and are CE, FCC, and RoHS certified, meeting global market access requirements. We provide full certification documents and test reports upon request.
Technical FAQ
Q: Can your screens replace original generator controller displays directly?
A: Yes, our screens match original hardware and software standards for plug-and-play installation without extra debugging.
Q: Do you offer technical support?
A: Our professional engineering team provides one-on-one support for driver design, debugging, and adaptation, with 2-hour working-day response.
