Core Abstract
This technical article provides a standardized analysis of backlit industrial graphic LCD screens, focusing on OEM solutions from Shenzhen Hengxunchuang Technology Co.,LTD. As a global supplier with 13 years of R&D and industrial application experience in the electronic information-industrial display track, we are committed to advancing industry technology . Our HxcDisplay backlit industrial graphic LCD screens are custom-built for industrial equipment maintenance, power instrumentation, and IoT terminal sectors, addressing core industry pain points such as high OEM spare part costs, long delivery lead times, and compatibility issues . Strictly adhering to ISO 9001, CE, FCC, and RoHS international standards, our products feature a core breakthrough in non-destructive compatibility and plug-and-play installation, eliminating the need for additional programming or on-site calibration . To date, our solutions have been deployed across 10+ countries and regions, serving industrial clients in power generation, flow measurement, and automation sectors, with verified reliability and compliance .
Technical Definition

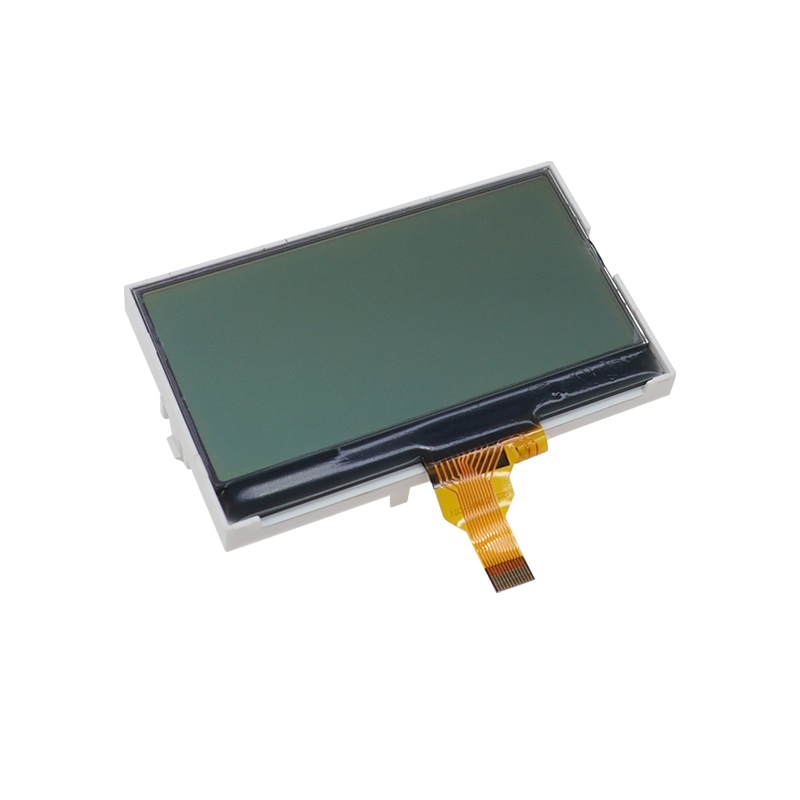

Backlit industrial graphic LCD screens are specialized display components designed for harsh industrial environments, featuring enhanced brightness, wide temperature tolerance, and anti-interference capabilities to ensure clear data visualization under extreme conditions . As a critical component in industrial control systems, these screens enable real-time data monitoring and equipment operation, supporting the stability and efficiency of industrial workflows .
Main Classifications
Our HxcDisplay product line covers mainstream OEM replacement series and customizable solutions to meet diverse industrial needs: 1. Standard Replacement Series: Precision-matched to OEM controllers including Deep Sea DSE7320, Caterpillar EMCP4.1/4.2, and Carrier APX X4-7300, featuring plug-and-play compatibility for quick equipment maintenance ; 2. Customized Series: Tailored for special industrial scenarios, offering adjustable dimensions, interfaces, and temperature ranges to fit unique equipment requirements .
Design Philosophy
Our products are engineered with the core principles of precise compatibility, robust durability, and easy installation, fully considering harsh industrial working conditions and following full-life-cycle reliability design standards to deliver stable, low-maintenance, cost-effective solutions .
Technical Principles
The core working principle of our HxcDisplay backlit industrial graphic LCD screens is based on precise hardware and software matching with OEM controller specifications, ensuring seamless integration without modifying the original system . The operational process includes three key steps: 1. Interface matching: Aligning physical connectors and electrical parameters with OEM standards to ensure signal compatibility; 2. Backlight optimization: Using reinforced backlight modules to enhance brightness and anti-interference performance; 3. System integration: Verifying compatibility with the controller’s operating system to enable plug-and-play functionality .
Core Architecture & Innovative Design
Our product’s modular architecture includes two key innovative components: 1. Precision Adaptation Module: Ensures 1:1 matching of size, interface, and electrical performance with OEM screens, eliminating compatibility risks; 2. Reinforced Backlight Module: Adopts industrial-grade liquid crystal glass and anti-electromagnetic interference design, extending backlight lifespan to ≥50,000 hours .
Comparison with Traditional Solutions
Compared to generic industrial LCD screens, our solutions solve long-standing industry pain points: 1. Traditional screens require on-site programming and calibration, while our plug-and-play design reduces equipment downtime by 80%; 2. Generic screens have limited temperature tolerance, while our products operate stably in -20℃ to +70℃ environments, adapting to extreme field conditions .
Technical Parameters & Specification Standards
All parameters of our HxcDisplay screens are tested in strict accordance with ISO 9001 standards, with clear testing conditions and tolerance controls. We provide full parameter test reports for each batch and support third-party certification .
Parameter Category | Core Parameter | Standard Indicator | Testing Condition | Selection Reference |
|---|---|---|---|---|
Display Performance | Backlight Lifespan | ≥50,000 Hours | Continuous operation at 25℃ | Ideal for long-term industrial deployment |
Electrical Characteristics | Operating Voltage | 3.3V/5V | 25℃ room temperature | Compatible with most industrial controllers |
Environmental Adaptability | Operating Temperature | -20℃ to +70℃ (standard); -40℃ to +85℃ (custom) | Extreme temperature cycling test | Choose based on field working conditions |
Mechanical Characteristics | Vibration Resistance | Meets IEC 60068-2-6 standard | 10-500Hz, 1g acceleration | Suitable for mobile industrial equipment |
Note: The above parameters are standard specifications. We offer customized parameter adjustments for special working conditions .
Technical Advantages & Differentiation
1. Non-Destructive Compatibility & Plug-and-Play Installation
Technical Support: Precision matching with OEM hardware and software standards, verified through 1,000+ compatibility tests . Performance Data: No additional programming or calibration required, reducing equipment downtime by 80% . Customer Value: Lowers maintenance costs and ensures quick equipment recovery, minimizing production losses .
2. Industrial-Grade Durability
Technical Support: Industrial-grade liquid crystal glass and reinforced backlight module, passed CE and RoHS certification . Performance Data: Operating temperature range of -20℃ to +70℃, backlight lifespan ≥50,000 hours . Customer Value: Reduces replacement frequency and maintenance costs, ensuring long-term stable operation in harsh environments .
3. Flexible Delivery & Customization
Technical Support: In-house R&D and production lines, with standardized spot inventory system . Performance Data: Standard models have no minimum order quantity (MOQ), custom models require 100PCS MOQ, delivery time 20-25 working days for standard orders . Customer Value: Meets emergency maintenance, small-batch replenishment, and large-scale procurement needs, ensuring stable supply .
International Standards & Compliance Certifications
Our HxcDisplay backlit industrial graphic LCD screens follow strict international standards in R&D, design, production, and testing, with a complete compliance system to meet global market requirements .
Core International Standards
ISO 9001: Quality management system standard; CE: European Union safety, health, and environmental protection standard; FCC: US Federal Communications Commission electromagnetic compatibility standard; RoHS: European Union restriction of hazardous substances standard .
Authoritative Certifications
System Certification: ISO 9001 quality management system; Product Certification: CE, FCC, RoHS; Testing Documents: We provide CE certification reports, RoHS reports, and factory inspection reports upon request .
Technical FAQ
Q: What is the operating temperature range of your backlit industrial LCD screens? A: Our standard models support -20℃ to +70℃, with custom options up to -40℃ to +85℃ for extreme environments .
Q: Do your products support customization? A: Yes, we offer full-process customization services including size, interface, and temperature range adjustments, with a minimum order quantity of 100PCS for custom models .
Q: Are your products compliant with international standards? A: All our products are certified with CE, FCC, and RoHS, and follow ISO 9001 quality management standards, meeting global market access requirements .
